ELSA drilling locations

Datei-Download
  • Data tables and Powerpoint figures will be implemented in April 2024

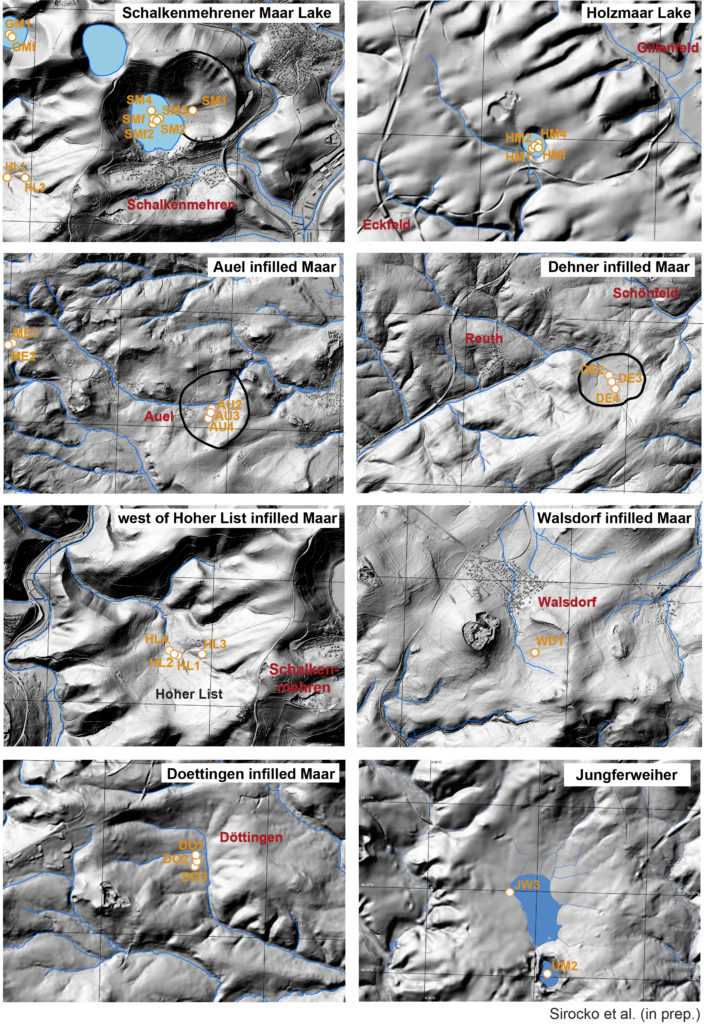

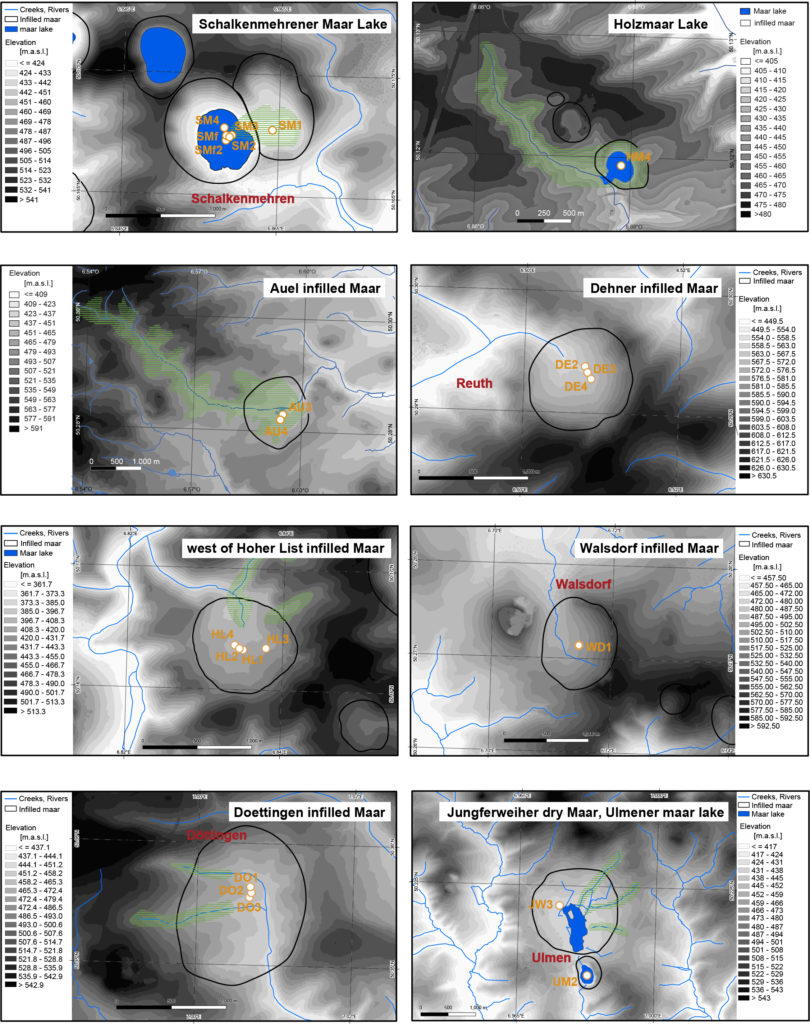

A total of 23 maar structures have been studied by the ELSA Project using 61 sediment cores of 2171 m length. The drilling locations have been usually placed in the middle of a maar structure, but a good accessability for the large drilling rig made it sometimes necessary to shift the drilling site, preferentially to the outflow side, if the maar is fed by a creek. Environmental protection area limit the access to many maar lakes and infilled structures, in particular if swamps fill the center part of the dried out lake.

It was the intention of ELSA to drill indeed all maar structures and decide on those, which are indeed the most suited to arrive at annual resolution records. The cores used for the last 60,000 years are those of the ELSA-20 record; the extension of the annual resolution time series back to 130,000 years and finally 470,000 yr b2k are in progress and will be presented with the upcoming ELSA-23 stack.

ELSA has drilled also outside the West Eifel Volcanic Field. We studied the volcanic crater lake of the Laacher See (Sirocko & Diensberg, in prep.), but also classical sites from past interglacials in northern Germany, e.g.  Munster, Bonstorf, Redderstall. The respective cores are also in the ELSA core repository and have been partly already analysed, however, not published yet.

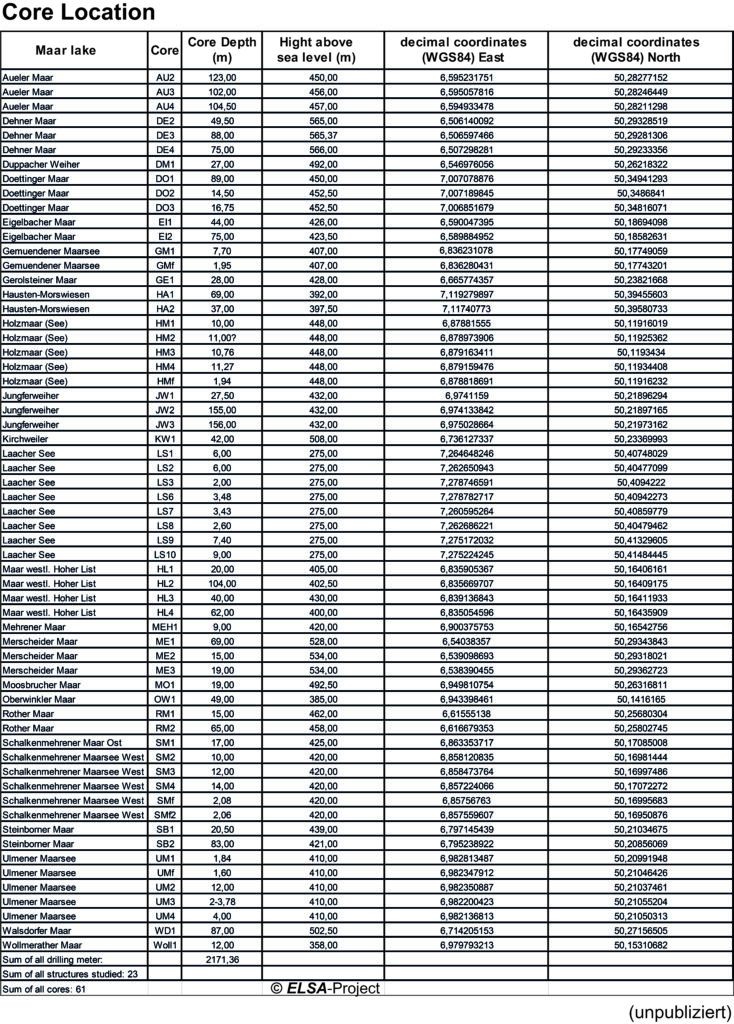

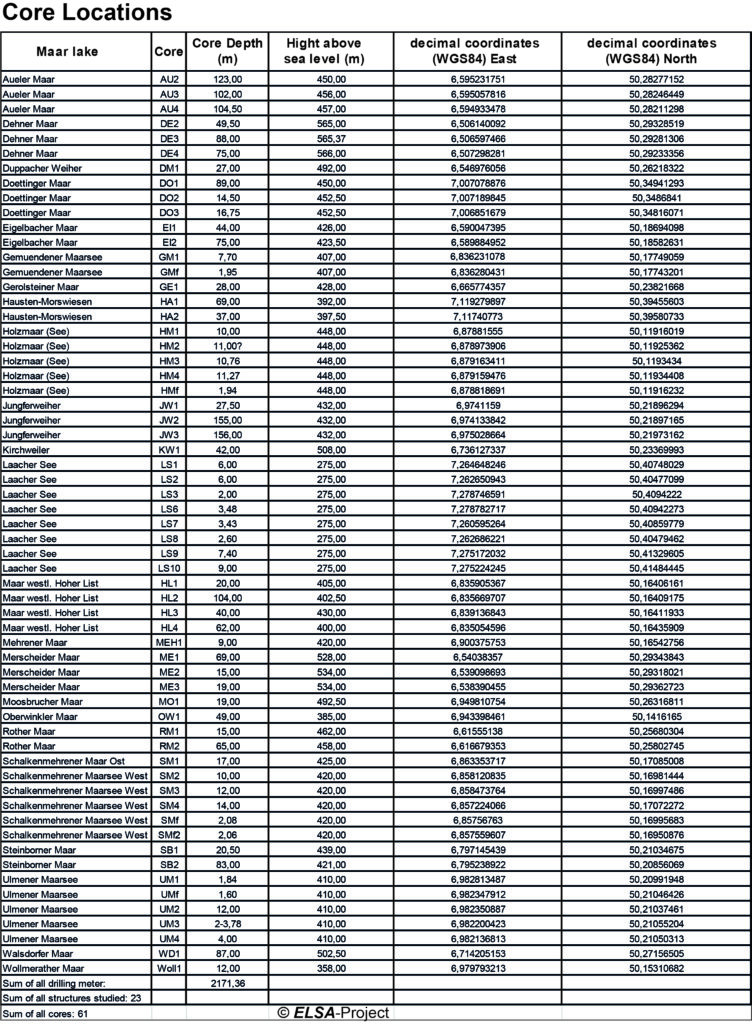

Table 1 presents the list of all ELSA cores with geographical coordinates.
